高性能稳幅稳相测试电缆组件，主要用于配合矢量网络分析仪(VNA)的测试应用，采用了专利技术设计并经过特殊的工艺处理，可满足实验室、生产线、测试系统等条件下微波电参数的精密测量。其主要特点是:在DC~67GHz范围内具有极为稳定的电压驻波比及插入损耗；拥有极其优异的机械相位稳定性和连接重复性，端口采用NMD连接器，具有坚固轻巧的机械结构，可承受弯曲、挤压、扭曲、拉伸等外力并保持可靠性能。
|
性能及特点 稳幅稳相 Phase and amplitude stable with flexure 耐压耐磨 Crush and Abrasion resistance 精确测量 Accurate measurements 长寿命 Long service life 高柔韧性 High degree of flexibility and low spring-back |
| ||||||||
|

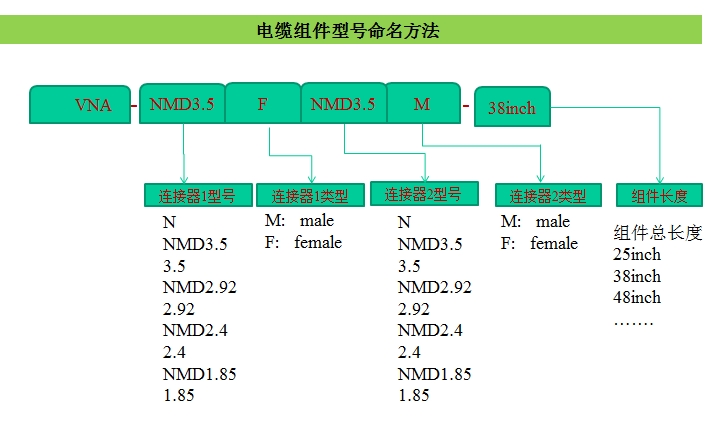

仪器端口 Test Port |
电缆端口1 Connector 1 |
电缆端口2 Connector 2 |
频率 Frequency |
驻波比 VSWR |
插损 IL |
幅度稳定度 Phase Stability |
相位稳定度 Amplitude Stability |
| |
|
Type N female |
Type N male |
Type N male |
18GHz |
1.20:1 max |
<1.5dB |
<±0.05dB |
<±2.0° |
| |
|
Type N female |
| ||||||||
|
NMD3.5mm male |
| ||||||||
|
3.5mm female |
| ||||||||
|
NMD3.5mm male |
NMD3.5mm female |
NMD3.5mm male |
26.5GHz |
1.25:1 max |
<1.8dB |
<±2.5° |
| ||
|
3.5mm female |
| ||||||||
|
Type N male |
18GHz |
1.20:1 max |
<1.5dB |
<±2.0° |
| ||||
|
Type N female |
| ||||||||
|
NMD2.92mm male |
NMD2.92mm female |
NMD2.92mm male |
40GHz |
1.30:1 max |
<2.8dB |
<±3.0° |
| ||
|
2.92mm female |
| ||||||||
|
NMD2.4mm male |
| ||||||||
|
2.4mm female |
| ||||||||
|
NMD2.4mm male |
NMD2.4mm female |
NMD2.4mm male |
50GHz |
1.35:1 max |
<3.2dB |
<±3.5° |
| ||
|
2.4mm female |
| ||||||||
|
NMD2.92mm male |
40GHz |
1.30:1 max |
<2.8dB |
<±3.0° |
| ||||
|
2.92mm female |
| ||||||||
|
NMD1.85mm male |
NMD1.85mm female |
NMD1.85mm male |
67GHz |
1.50:1 max |
<5.8dB |
<±6.5° |
| ||
|
1.85mm female |
| ||||||||
