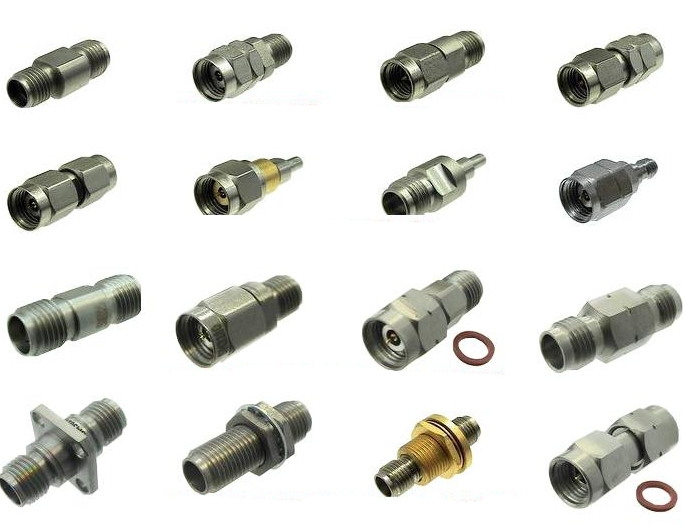

北京普和微优势供应DC-65GHZ不锈钢毫米波转接器， 有K(2.92), 3.5, 2.4, 1.85系列。
一。K-JK 毫米波转接器
二。K-KK 毫米波转接器
三。2.4-JK 毫米波转接器
四。2.4-KK 毫米波转接器
五。3.5/K-KKG 毫米波转接器
六。K/2.4-JJG 毫米波转接器
七。K/2.4-JKG 毫米波转接器
八。3.5/2.4-JJG毫米波转接器

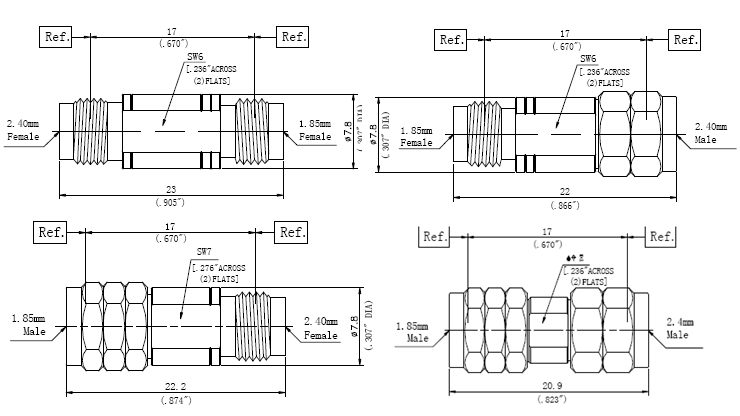

九。1.85/2.4 毫米波转接器

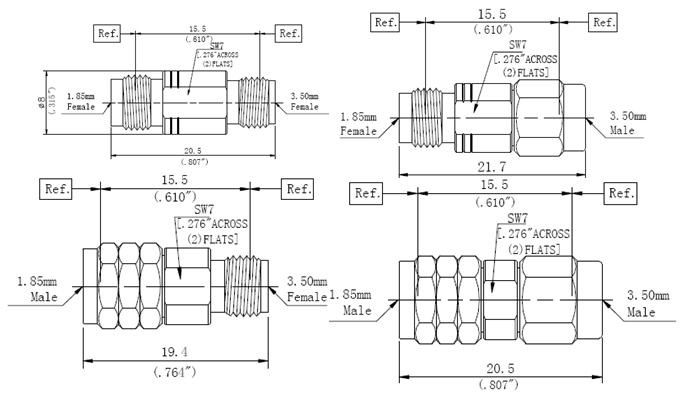

十。1.85/3.5 毫米波转接器

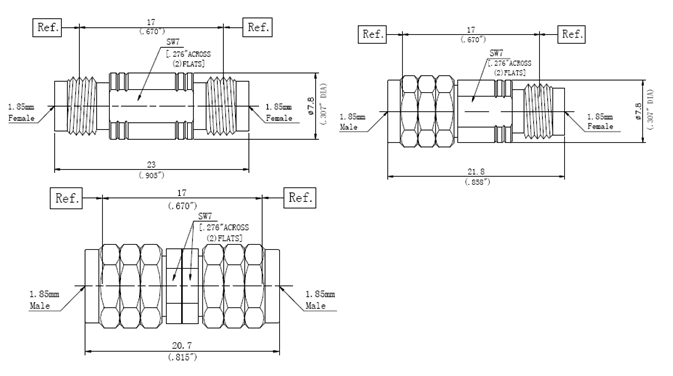

十一。1.85/1.85 毫米波转接器
技术指标：
|
瑞贝斯型号 |
描述 |
频率范围 |
驻波比 |
|
3.5-KK |
3.5mm(f)-3.5mm(f) |
DC to 26.5GHz |
1.106 |
|
3.5-JJ |
3.5mm(m)-3.5mm(m) |
DC to 26.5GHz |
1.106 |
|
3.5-JK |
3.5mm(m)-3.5mm(f) |
DC to 26.5GHz |
1.106 |
|
3.5/N-JK |
3.5mm(m)-N(f) |
DC to 18GHz |
1.083 |
|
3.5/N-JJ |
3.5mm(m)-N(m) |
DC to 18GHz |
1.083 |
|
3.5/N-KJ |
3.5mm(f)-N(m) |
DC to 18GHz |
1.083 |
|
3.5/N-KK |
3.5mm(f)-N(f) |
DC to 18GHz |
1.083 |
|
2.4-JJ |
2.4mm(m)-2.4mm(m) |
DC to 40GHz |
1.12 |
|
2.4-KK |
2.4mm(f)-2.4mm(f) |
DC to 40GHz |
1.12 |
|
2.4-JK |
2.4mm(m)-2.4mm(f) |
DC to 40GHz |
1.12 |
|
2.4/3.5-JJ |
2.4mm(m)-3.5mm(m) |
DC to 26.5GHz |
1.15 |
|
2.4/3.5-JK |
2.4mm(m)-3.5mm(f) |
DC to 26.5GHz |
1.15 |
|
2.4/3.5-KJ |
2.4mm(f)-3.5mm(m) |
DC to 26.5GHz |
1.15 |
|
2.4/3.5-KK |
2.4mm(f)-3.5mm(f) |
DC to 26.5GHz |
1.15 |
|
2.4/N-JK |
2.4mm(m)- Type N(f) |
DC to 18GHz |
1.12 |
|
2.4/N-KJ |
2.4mm(f)- Type N(m) |
DC to 18GHz |
1.12 |
|
2.4/N-KK |
2.4mm(f)- Type N(f) |
DC to 18GHz |
1.12 |
|
K-JK |
2.92mm(m)-2.92mm(f) |
DC to 40GHz |
1.12 |
|
K-KK |
2.92mm(f)-2.92mm(f) |
DC to 40GHz |
1.12 |
|
2.4/ K -JJ |
2.4mm(m)-2.92mm(m) |
DC to 40GHz |
1.12 |
|
2.4/ K -JK |
2.4mm(m)-2.92mm(f) |
DC to 40GHz |
1.12 |
|
2.4/ K -KJ |
2.4mm(f)-2.92mm(m) |
DC to 40GHz |
1.12 |
|
2.4/ K -KK |
2.4mm(f)-2.92mm(f) |
DC to 40GHz |
1.12 |
|
K /N-JJ |
2.92mm(m)-Type N(m) |
DC to 18GHz |
1.15 |
|
K /N-JK |
2.92mm(m)- Type N(f) |
DC to 18GHz |
1.15 |
|
K /N-KJ |
2.92mm(f)- Type N(m) |
DC to 18GHz |
1.15 |
|
K /N-KK |
2.92mm(f)- Type N(f) |
DC to 18GHz |
1.15 |
|
1.85 /2.4-KJ |
1.85mm(f)- 2.4mm(m) |
DC to 50GHz |
1.25 |
|
1.85 /2.4-Kk |
1.85mm(f)- 2.4mm(f) |
DC to 50GHz |
1.25 |
|
1.85 /2.4-Jk |
1.85mm(m)- 2.4mm(f) |
DC to 50GHz |
1.25 |
|
1.85 /2.4-JJ |
1.85mm(m)-2.4mm(m) |
DC to 50GHz |
1.25 |
|
1.85 /3.5-KJ |
1.85mm(f)- 3.5mm(M) |
DC to 33GHz |
1.15 |
|
1.85 /3.5-KK |
1.85mm(f)- 3.5mm(f) |
DC to 33GHz |
1.15 |
|
1.85 /3.5-JK |
1.85mm(m)- 3.5mm(f) |
DC to 33GHz |
1.15 |
|
1.85 /3.5-JJ |
1.85mm(m)-3.5mm(m) |
DC to 33GHz |
1.15 |
|
1.85 /1.85-JJ |
1.85mm(m)-1.85mm(m) |
DC to 65GHz |
1.25 |
|
1.85 /1.85-JK |
1.85mm(m)-1.85mm(f) |
DC to 65GHz |
1.25 |
|
1.85 /1.85-KK |
1.85mm(f)-1.85mm(f) |
DC to 65GHz |
1.25 |
